Initially, term function refers to the semantic role that a term plays in the scientific literature (Cheng, 2015). It also represents the sentence's function where the term belongs if all the citation sentences in a paragraph in the related work section share a specific “term function” (for example, the research method related to the citing article). We believe this paragraph will be easier to understand because all the citations focus on a specific term function (of a topic).

Except for the term function “research method” we mentioned above, there are many other term functions, such as research topic, technology dataset, application, evaluation. However, according to previous definitions, term functions could be classified into different schemes, as shown in table 1.

However, the classification of the term function is still obscure and not uniform. Considering the specific research problem in this article, we took some categories from existing literature and proposed three new categories of term function, which we will introduce in the next section. As a novel task, although several attempts have been made on term function analysis, the topic still remains to be developed, especially the gap between term function analysis and its applications, which forms the exact initiation of our study.

Citation recommendation for research papers was first introduced by McNee et al. (2002). Since then, there has been a rich line of research on this topic. For example, Strohman, Croft, and Jensen (2007) combined the content of previous literature and its citation network to recommend relevant material that a given article should cite. They found that this mixed method performed much better than the traditional text-similarity approach. Tang and Zhang (2009) proposed a topic distribution discovery-based CR model that performed well on sentence-level CR on the NIPS dataset. They argued that CR could be integrated into academic search systems to improve service. He et al. (2011) presented a CR system that automatically identified contexts where citations were needed in a manuscript and recommended appropriate citations. In 2013, Kates-harbeck and Haggblade (2013) used a machine learning method that utilized context-based features and text-based features to rank references for a given short text. Recently, with the growth of scholarly data and the development of deep learning, neural networks were transplanted to CR problems, aiming to train more robust models and enhance CR performance (Ebesu & Fang, 2017; Huang et al., 2015).

In terms of the context scope based on which a citation recommendation list was generated, the CR task can be divided into two aspects: local citation recommendation (LCR) (Tang, Wan, & Zhang, 2014; Yang et al., 2019) and global citation recommendation (GCR) (Tang, Wan, & Zhang, 2014; Ayala-Gomez et al., 2018).

Local citation recommendation aims to recommend citations for a specific context where citations are needed, which is also called context-aware citation recommendation (Tang, Wan, & Zhang, 2014). Here, the specific context can be one sentence or several sentences; in this paper, it represents all the sentences in a paragraph in the related work sections. Since contexts contain rich semantic information, content-based approaches were usually used in LCR.

He et al. (2010) proposed an effective context-aware citation recommendation approach, which designed a non-parametric probabilistic model to measure the relevance between a citation context and a document. In a similar task, the translation model was used to translate the query terms in the citation context, which bridged the vocabulary gap between the citation context and recommended document (Lu et al., 2011; He et al., 2012). Rokach et al. (2013) presented a supervised learning method utilizing three types of features (general features, author-aware features, and context-aware features) to recommend citations for a given citation context. This approach had been applied for citation recommendation service in CiteSeerX digital library. Except for these features, time or publication date has also been proven to be important in citation recommendation (Gao, 2016; Jiang, 2015; Jiang, Liu, & Gao, 2014; 2015). To provide a personalized citation recommendation service, Liu, Yan, and Yan (2013) combined user profiles with context-aware citation recommendation. Experimental results showed that the proposed strategy outperformed language model-based and translation model-based algorithms. Other research explored the effectiveness of citation networks (Jiang et al., 2018; Livne et al., 2014; Son and Kim, 2018), core scientific concepts (Duma et al., 2016) in local citation recommendation. (Duma & Klein, 2014) introduced a citation resolution method to evaluate context-based citation recommendation systems. Citation context, as the primary evidence to recommend citations, has become a theorem in this field (Bhagavatula et al., 2018).

Recently, with the popularity of deep learning in both academia and industry, different deep learning algorithms have been applied to citation recommendation. (Huang et al., 2014) represented words and documents by learning simultaneously from citation context and cited document pairs; the probabilistic neural model was used to estimate the probability of words appeared in the citation context under a candidate reference paper. This approach achieved 5% improvement on Recall than the translation model. Ebesu and Fang (2017) proposed a neural citation network (NCN) that can model the semantic composition of citation contexts and corresponding cited documents titles by exploiting author relations. This method improved several state-of-the-art baselines on all metrics (Recall, MAP, MRR, and NDCG) by 13-16%.

Unlike LCR, global citation recommendation targets on recommending a reference list for a given paper (Tang, Wan, & Zhang, 2014). However, only focus on finding the relevant papers rather than the essential papers can be a drawback of GCR because users need to evaluate the quality of the recommended papers (Chen et al. 2011). This is challenge for new researchers.

To bridge this gap, Küçüktunç et al. (2012; 2013; 2015) recommended a diverse reference list which allowed the users to reach either old, well-cited, well-known research papers or recent, less known ones. To improve users' experience, Wu et al. (2012) proposed to recommend references based on their information needs, such as publication time preference, self-citation preference, co-citation preference, and publication reputation preference. However, most existing research used a single data source for the recommendation, which failed to meet users' information needs about different aspects in writing (Zarrinkalam & Kahani, 2012). Therefore, Zarrinkalam and Kahani (2012) introduced a strategy to recommend citations based on multiple linked data sources, which enriched the background data of recommender systems thus enhancing the recommendations.

Kates-harbeck and Haggblade (2013) recommended references for a given abstract with a set of key technical words, an author list, and publication data using a two-stage methodology. In the first stage, they trained a classifier to rank a candidate reference list based on the paper score; in the second stage, they re-ranked the scored candidate papers using connectivity information. Their experiment results showed that text-based features were most effective in rankings. Caragea et al. (2013) compared the performance of the collaborative filtering-based (CF) approach and singular value decomposition-based (SVD) approach on GCR using CiteSeer dataset, finding that SVD performed better than CF since SVD can easily incorporate additional information.

As a benefit of different citation recommendation tasks and algorithms mentioned above, many citation recommendation systems have been developed, for example, ActiveCite (Zhou, 2010), CiteSight (Livne et al., 2014), RefSeer (Huang et al., 2014), ClusCite (Ren et al., 2014), DiSCern (Chakraborty et al., 2015), and Rec4LRW (Sesagiri Raamkumar, Foo, & Pang, 2015). Due to the usefulness but challenge of this task, citation recommendation is attracting more and more attention from researchers.

Typically, researchers organize related literature by following specific patterns (e.g. based on the similarity, based on different topics, based on the published time, or based on the roles) rather than roughly putting a list of relevant literature together. Meanwhile, the literature is organized to demonstrate previous research problems, methods, datasets, and applications, defined as term functions in our study, that are related to a research. We propose a term function classification scheme used to annotate a real-world dataset acquired from ACL Anthology. After that, we analyze the annotation results to identify the paragraph organization patterns in related work sections.

Term function means the semantic role that a term plays in the scientific literature (Cheng, 2015). The term's function also reflects the function of the citation context it locates in the scientific literature. For example, support vector machine (SVM) is the core research problem in (Li, Wang, & Wang, 2010) but the method to solve image classification problems in (Melgani & Bruzzone, 2004). Therefore, the paper “A Tutorial on Support Vector Machines for Pattern Recognition” (Burges, 1998) is cited as a related research problem in (Li, Wang, & Wang, 2010) but cited as a related method to solve image classification problems in (Melgani & Bruzzone, 2004). In other words, citations could be recommended according to the “term function” needed in the citing article, supposing the related literature in the citing is organized by these term functions. To verify this hypothesis, we develop a term function classification scheme by combining categories from existing literature and three new categories, which we draw from a pilot study, as shown in Table 2. The reason that we add three new functions is existing categories of term functions are proposed for sentence-level. Paragraphs have more complex structures than sentences, and they are usually organized by different roles in the related studies section. For example, a paragraph discusses how the method used in the original paper has been applied to solve other problems; we define this pattern as “Method+ Problem.” On the other hand, a paragraph may also focus on discussing how other relevant methods have solved the research problem mentioned in the original paper except for the method proposed in the original paper; we define this pattern as “Problem+ Method.” We also define another function, “Topic-irrelevant,” since some paragraphs that served as background knowledge are not closely relevant to the original paper's topics. Fig. 3 demonstrates that the three new term functions frequently appear in the related studies section.

We collected a dataset consisting of 238, 109, and 184 research papers in sentiment analysis, information extraction, and recommender systems, respectively. We manually downloaded the pdf files from ACL Anthology and placed them in three separate folders. We converted the pdf files into text format using Apache PDFBox^②(^② https://pdfbox.apache.org/). We then extracted the title, abstract, and related work section information for annotation.

Paragraph organization pattern annotation is difficult since it requires extensive domain knowledge. To ensure the data quality, we invited two Ph.D. students who are familiar with sentiment analysis, information extraction, and recommender systems to annotate the data. Before annotation, they were required to pre-annotate ten articles under each folder to understand the annotation guideline, shown as follows:

• Firstly, read the title and abstract to get the research problems and research methods of the article.

• Secondly, find the paragraph that needs to be annotated (ignore paragraphs without citations), read the paragraph's contents to get the features that indicate its term function, label the paragraph with a category of term function mentioned above.

• Avoid subjective judgment during annotation.

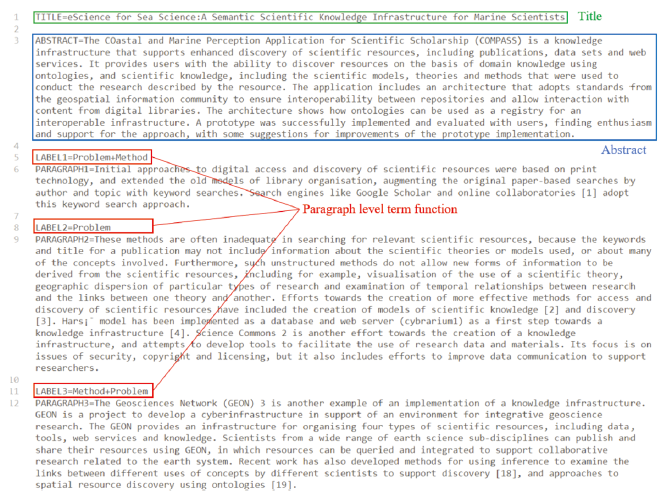

Fig. 2 describes an annotation example, which was saved into the text format. The pairwise Kappa coefficients (Viera & Garrett, 2005) were applied to calculate the inter-annotator agreement. Cohen's kappa scores were 0.778, 0.871, and 0.748 on sentiment analysis, information extraction, and recommender systems, respectively. These are satisfactory according to the existing evaluation standard (Viera & Garrett, 2005).

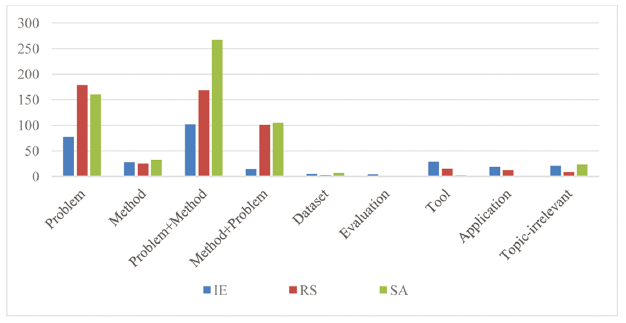

To investigate how authors organized literature in related work sections, we conducted a statistical analysis of the annotation results. Fig. 3 represents the distribution of term functions under each category over different topics. Based on the results, most paragraphs belong to problem+ method, problem, method+ problem, and method, with a percentage of 38.2%, 29.5%, 15.6%, and 6.0% on average, respectively, but with a slight difference between different topics. The result supports the hypothesis that authors usually pay more attention to the research problems and methods relevant to their topics while writing a literature review. In other words, they tend to focus on investigating who was involved in studying the problems and methods, how they described the problems and methods, what methods have been used to solve the problem, and how the method was applied to other problems. Existing datasets, evaluation methods, tools, and applications related to their research were also occasionally involved in two or more independent paragraphs. In addition, some topic-irrelevant materials were referred to in a few paragraphs, suggesting that the research topic is novel, and existing literature in this area was lacking.

The findings enlighten us to conduct citation recommendation in the related work sections by considering these information needs. In this paper, we explored this innovative citation recommendation task based on four major term functions: problem+ method, problem, method+ problem, and method.

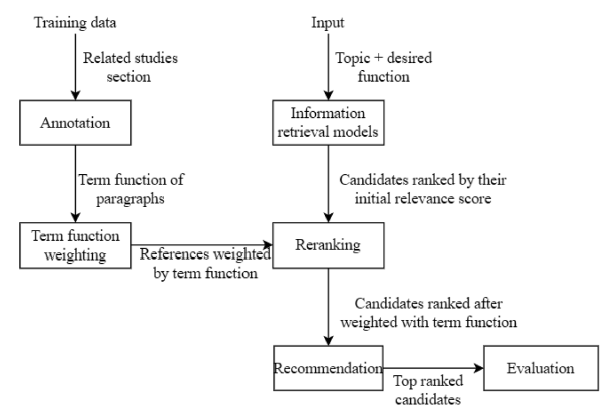

As discussed previously, the term function-based citation recommendation is a kind of global citation recommendation at the paragraph level. Users are required to input the topic (e.g. citation recommendation, translation model) and the term function (e.g. problem+ method, method+ problem). Our approach will recommend a list of citations that are both topic and term function relevant.

Definition 1 (Original document collection). Given a document d with t and a as its title and abstract, the document has a set of paragraphs P = {p₁, p₂, …, p_i} in the related works section, the term function of each paragraph p_i is defined as l_i. Therefore, the paragraph set P has a corresponding term function set L = {l₁, l₂, …, l_i}. All the original documents together with their paragraph sets and term function sets form the original document collection D.

Definition 2 (Candidate document collection). Given a document c with t and a as its title and abstract, we define its term function as F = {f₁, f₂, f₃, f₄}, where f₁, f₂, f₃, f₄ refer to problem+ method, problem, method+ problem, and method respectively, which are determined by the term function of its citing paragraphs. All the candidate documents were extracted from the references of the original documents; they form the candidate document collection C.

Definition 3 (Term function-based citation recommendation). Given a paragraph p whose topic is t and expected term function is f, our goal is to estimate the probability of each document in the candidate document collection C to be cited in this paragraph.

(1) BM25 model

BM25 (Robertson & Zaragoza, 2009) has been widely employed in many information retrieval systems and proved to be effective. Recently, it has also been frequently selected as a baseline model in many citation recommendation tasks (Bhagavatula et al., 2018; Ebesu & Fang 2017; Gao, 2016; Jiang, Liu, & Gao, 2015; Ren et al., 2014; Sesagiri Raamkumar, Foo, & Pang, 2015). In this paper, we use BM25 as the baseline method. With the BM25 ranking function, the relevance score of a candidate document d with respect to a paragraph as a query q is calculated as follows:

Where k₁ and b are free hyper-parameters. avgdl and N respectively donate the average document length and the total number of documents in the collection. f_i and n(q_i) represent the frequencies of a query term q_i in a candidate document and the total number of documents containing the query term q_i.

(2) Word2vec based vector space model

Word2vec is one of the most widely used word embedding models used to represent texts with numerical vectors (Mikolov et al., 2013). Compared to the term frequency used in the BM25 algorithm, Word2vec can preserve the semantic and syntactic relationship between words. Therefore, we use Word2vec to create vectors for both queries and documents in this paper. We train our Word2vec model with Gensim^③(^③ https://radimrehurek.com/gensim/models/word2vec.html), a python package used for topic modeling, text processing, and working with word vector models such as Word2vec and FastText. The Word2vec model is trained on the ACL Anthology Reference Corpus^④(^④ https://web.eecs.umich.edu/~lahiri/acl_arc.html), which contains 10,920 academic papers from the ACL Anthology. Finally, we generate vectors of size 300 for the queries and documents. The similarity between a query and the document is calculated by using the vector space model (VSM) with the following equation:

Where q and d are the vector representations of the query and the document, respectively.

In this paper, we explore the influence of term functions in citation recommendation and propose the term function weighting-based recommendation model. Compared with the original BM25 model and Word2vec-based VSM, an essential step of term function weighting-based recommendation models is to compute the weight of each document in the candidate document collection on each of the four term functions.

We define F = (f₁, f₂, f₃, f₄) as the weighted term function of each document d in the candidate document collection, where f₁, f₂, f₃, f₄ respectively represents the frequency of problem, method, problem+ method, method+ problem. After that, the term function should be added to the three recommendation models to improve performance.

For a document d and a paragraph as a query q, q_f donates the expected term function of this query/paragraph. Therefore, we calculate the relevance score on the term function dimension as follow:

For example, if a user inputs a query q with the term function as problem, one of a document d in the candidate document collection whose term function is F = (4, 2, 8, 1), we compute its term function weight on problem, method, problem+ method, method+problem respectively as $\frac{4}{15}$, $\frac{2}{15}$, $\frac{8}{15}$, $\frac{1}{15}$, where the sum of the weights should adhere to the following constraint:

Finally, the relevance score of a candidate document d with respect to a paragraph as a query q which combines text similarity and term function matching is computed with the following two equations respectively:

Equation (5) is for term function weighting-based BM25 model, while equation (6) is for Word2vec-based VSM models with term function weighting.

Pseudo code for the baseline recommendation models or term function weighting-based recommendation models is described in Algorithm 1.

Since there is no existing standard benchmark dataset with annotated term function at the paragraph level for term function-based citation recommendation, we collect and build our data set from ACL Anthology^⑤(^⑤ http://www.aclweb.org/anthology/) in the domains of information extraction, sentiment analysis, and recommender systems. In total, 531 research articles with full text and their 2,875 reference articles with title, published year, and abstract are included. As mentioned in section 3.1, all the paragraphs in the related work sections of the 531 research articles have been labeled with one of the four term functions. Since many of the reference articles have been co-cited by the original articles, it is easy for us to figure out their term function distributions. For example, the term function distribution of paper “On the recommending of citations for research papers (McNee et al., 2002)” is (3/8, 4/8, 0, 1/8) in terms of (problem+ method, problem, method+ problem, and method), which can be used as weighting parameters. We use the Python NLTK tool^⑥(^⑥ https://www.nltk.org/) to perform text pre-processing like removing numbers, stop words, and stemming. Finally, the experiment dataset is stored in a MySQL database.

In our experiment, we randomly partition the dataset into five subsamples and then perform 5-fold cross-validation on the same partition for our approaches and the baseline methods. At each time, four sets were used as training sets for term function weighting, and the remaining one set was used for testing. Also, a small portion of examples split from the training set was used for validation. We performed the process five times and averaged their performance for evaluation.

• Baseline models. We compute the similarity scores between a paragraph and the candidate recommendation articles with the BM25 model (the default values of b = 0.75 and k1 = 1.2 are applied) and Word2vec based VSM model, respectively. Meanwhile, we restrict the published date of the candidate articles to a year before the original article.

• Term function weighting-based recommendation models. In this method, we modify the baseline models by involving term function information and rank the candidate recommendation articles based on the scores computed by Eq. (5).

Moreover, we conduct a comparison study on three fields, including information extraction (300 paragraphs), sentiment analysis (383 paragraphs), and recommender system (510 paragraphs), to analyze the effect of term function on citation recommendation performance in different fields. Therefore, twelve runs in total, including six baseline methods and six term function weighting-based methods. They are BM25 (BM25), word2vec-based VSM (W2V-VSM), BM25 with term function weighting (TFW-BM25), word2vec-based VSM with term function weighting (TFW- W2V-VSM) in information extraction, sentiment analysis, and recommender system, respectively.

Citation recommendation is essentially an information retrieval task. The top-ranked documents are the most important to get the correct recommendation (Wu et al., 2012). Therefore, we employ IR evaluation measures, including Precision, Recall, and F-measure, in our experiments. For a given query (paragraph with its labeled term function) in the test set, we use the original set of references, which were not present while training, as the ground truth (Rokach et al., 2013). In experiments, the number of recommended citations is set as 5, 10, 20, and 30, respectively.

Table 3, table 4, and table 5 show the result for each compared method on our dataset regarding the three fields, respectively. In the results, the average precision score, recall score, and F1 score in terms of a different number of citations in the recommendation list.

There are some interesting findings from the results:

• First, the term function-based methods outperform the baseline methods. For example, the term function-based BM25 methods improve the baseline BM25 methods by 5.0% (average in the three fields, the same in the following description) on F1 score when the number of recommended citations is set as 20 and improve the baseline by 12.9% on recall when the number of recommended citations is set as 30, while the term function-based Word2vec-VSM methods improve the baseline Word2vec-VSM methods by 5.4% on F1 score when the number of recommended citations is set as 20 and improve the baseline by 9.8% on recall when the number of recommended citations is set as 20. The improvement demonstrates that term function is a useful feature in citation recommendation, particularly in the related work sections.

• Second, there are no significant differences between different fields on both the baseline methods and the term function-based methods. Intuitively, the styles of organizing related studies in the three fields are similar, as proved in Fig. 3. Therefore, it would be interesting to investigate the literature review from different disciplines such as LIS and economy, or different type of publications such as quantitative and qualitative research.

• Third, the Word2vec-VSM model outperforms the BM25 model before and after term function-weighting, indicates the potential of applying term functions to more complex information retrieval such as BERT-based deep learning models to improve both performance and interpretability.

Our experiment results show that compared to the traditional retrieval models such as BM25 and Word2vec-VSM, which have been proved effective in information retrieval and recommendation, our term function weighting-based strategies recommend a more accurate and structured literature list, demonstrating that term function is an effective feature in citation recommendation, especially when recommending papers for structured literature review. Compared with deep learning-based-recommendation approaches (Zhang et al., 2019), our strategy can generate intuitive explanations of the results for users or system designers, improving system transparency and persuasiveness, trustworthiness, and effectiveness. For example, users can quickly figure out both the content and term function relevance of a recommended item. Not only will this new citation recommendation strategy benefit for semantic scientific information retrieval, but it also benefits automatically structured summarization and literature review generation.

However, there are some limitations to our proposed strategy. In our measurement, we assume that any paper other than the actual citation is not relevant. In fact, there may be multiple papers that provide the same support/evidence and can equally serve as valid citations. Therefore, the above measures probably underestimate the actual performance. It might be interesting to look at which papers other than the one they are citing are relevant. However, that would require subjective and manual relevance judgments. Another is the limited amount of data. Since term function annotation is still a challenging task, it requires field experts and manual work. Although Cheng (2015) is trying to develop automatic term function identification techniques, there is a considerable gap between experiment and application. Therefore, using machine learning models for automatic classification of the term functions will be explored to get more training data. Absolutely, our citation recommendation strategy initiated a research direction of how term function could be used and how to construct a structured literature review system.
