1 Introduction
Currently, quantity of electronic academic literatures has reached a massive level. Challenges have shown up when people want to investigate research status quo in a field (Liu, 2013): (1) When searching in academic databases (e.g., Web of Science(1)http://isiknowledge.com/) or search engines (e.g., Google Scholar(2)http://scholar.google.com/), users are often given the relevant and ranked results which include many redundant information in themselves or among different platforms. (2) Although manual literature reviews can help researchers learn quickly about a new field, such surveys are in a small amount and their formation cycles are long which will lead to delay. Therefore, tools and systems are urgently needed to automatically generate a comprehensive, detailed and accurate survey according to the given topic words (Nenkova & McKeown, 2011). Here, survey means literature review. At the same time, such tools and systems should also help researchers retrieve relevant information in real time.
Ideally, automatic survey tools may deal with problems mentioned above. When applying such tools, how to choose data for survey generation is another challenge. Firstly, if all literature contents are used to generate a survey, system cost will be increased and unimportant and redundant contents may be added. Secondly, if we only use abstracts for survey generation, there will be information loss compared with using full text. Hence, citation content (represented by citing sentences) can be chosen as the source dataset and the main reasons include: (1) citation content is not only consistent with original abstract, but also can provide more concepts, such as entities and experimental methods (Divoli, Nakov & Hearst, 2012), and even retain some original information from cited articles. (2) since citation content reflects author’s analysis and summarization of other articles, it has objectivity and diversity (Elkiss et al., 2008).
In this paper, we use citation content to conduct automatic documents surveys, and apply clustering algorithms to build an automatic survey generation tool, named CitationAS(3)(http://117.89.118.178:8001/CitationAS/). The main works include: (1) we build a demonstration website which can automatically generate surveys under a given topic; (2) we optimize a search results clustering engine, Carrot2(4)(http://project.carrot2.org/) (Osiński & Weiss, 2005a), in three aspects, similar cluster labels merging, important sentences extraction and survey generation; (3) we consider the location information of citation sentences when calculating sentence importance.
2 Related Works
Document summarization aims to solve the problem of information overload and help users better understand vast amount of text information. It can be divided into two categories (Marujo et al., 2015): (1) single document summarization. This technology applies a method to extract important content from one document and organizes them according to the order in original text. (2) multi-document summarization. It deals with document collection. This approach firstly needs to extract the relevant sentences from documents. Then, it sorts sentences according to redundancy and importance. Finally, the summary is generated based on the predefined length. Automatic surveys can use the technology of multi-document summarization.
Multi-document summarization technology includes the following aspects: (1) graph-based ranking method. This method usually works by performing over an affinity graph among sentences to extract important sentences for summarization. For example, Sarkar, Saraf and Ghosh (2015) used a hybrid similarity measure to improve the graph. Valizadeh and Brazdil (2015) designed a density-based graph model by adding density to LexRank and T-LexRank. (2) information extraction method. It first needs to design a summarization framework to extract information from documents. Then the summarization framework can be used to transform acquired information into semantically coherent summaries. Zhang, Li, Gao and Ouyang (2013) proposed a speech act-guided summarization approach, which could extract key terms with the recognized speech acts and generate template-based summaries. Jaidka, Khoo and Na (2013) developed a literature review framework by deconstructing human-written literature reviews and identified integrative and descriptive literature reviews. (3) sentence-feature-based method. This approach splits documents into sentences and classifies similar sentences into the same category. Then, it detects sentences from different categories to generate summary. Yang, Cai, Pan, Dai and Mu (2017) employed Nonnegative Matrix Tri-Factorization to cluster sentences using inter-type relationships and intra-type information.
Recent years, some researchers have applied citation content to generate surveys. For example, Qazvinian and Radev (2008) proposed to use citation networks to generate the summary. They constructed the weighted graph by using citation sentences as vertexes and similarity between sentences as edges. Then they applied clustering algorithms and calculated the weight of sentences in each cluster to select the summary sentences. Tandon and Jain (2012) generated the structured summary by classifying citation content into one or more classes. Cohan and Goharian (2015) grouped citation content and its context at first, and then ranked sentences within each group, finally sentences were selected for summary. Yang et al. (2016) utilized key phrases, spectral clustering and the ILP optimization framework to generate surveys. On the whole, the research is still at its beginning stage for automatic survey based on citation content, and it rarely achieves a demonstrable system. Therefore, this research reported here belongs to a relatively new research direction.
3 Dataset and Methodology
3.1 Dataset
In this paper, we collected about 110, 000 articles in XML format from PLOS One5(http://journals.plos.org/plosone/) between 2006 and 2015, covering subjects such as cell biology, mental health, computer science and so on. We identified citation sentences by rules whether a sentence containing reference marks (e.g., “[12]”, “[1]-[3]”). And XML labels were removed. In our work, citation content refers to citation sentences. 4, 339, 217 citation sentences were extracted to be used as dataset for automatic survey generation. Table 1 displays citation sentences examples.
Table 1 Citation Sentences Examples |
| No. | Citation sentence |
|---|---|
| 1 | Their transcription is dependent on mouse Cebpe and human CEBPE [12]. |
| 2 | These changes may derive in a higher risk for type 2 diabetes development [8], [9]. |
| 3 | It interacts with a variety of transcriptional factors and MLL proteins [9]-[12]. |
| 4 | Most pathogens of humans, animals and plants are multi-host pathogens [1]-[3], [20]. |
Before the experiment of automatic survey generation, we analyse topic distribution of citation content dataset from an overall perspective. The aim is to understand the content of dataset and to provide a reference for acquiring search terms. Therefore, we apply LDA to analyse topics. LDA is a document topic generation model, which is also a three-level hierarchical Bayesian model (Blei, Ng & Jordan, 2003). In this model, firstly, it supposes that the word is generated by topic probability distribution. And each topic is a multinomial distribution on the vocabulary. Then, the document is assumed to be a mixture of potential topic probability distribution. Finally, it generates topics from Dirichlet distribution for each document, and combines probability distribution of topics and words to generate each word in the document. There are some main parameters in LDA, which are α, β, K, d and z. Among them, α is the parameter of Dirichlet prior on per-document topic distribution. β is the parameter of Dirichlet prior on per-topic word distribution. K is the number of topics, d refers to the documents and z represents the topics. In this paper, we set α, β and K to 0.1, 0.01 and 10. We also run LDA for 2000 iterations.
3.2 Framework of CitationAS
Figure 1. Framework of CitationAS. |
3.3 Key Modules and Technology of CitationAS
3.3.1 Retrieval module
We use Lucene(6)(http://lucene.apache.org/)to index and retrieve the dataset. When establishing index files,we add citation sentences and structure information including doi, cited count,positions of the sentence and its first word in the original article and paragraph.Since the final survey is based on user’s search terms in CitationAS, we choose 20 high-frequency phrases from the dataset as search terms and used them for experiments. Phrases are shown in Table 2. Here, the frequency refers to the number of phrases presented in the citation content dataset. We divided them into ten high frequency 2-gram and 3-gram separately. When retrieved, our system gets relevant citation sentences based on inverted index and search terms. Then the results are ranked based on TF-IDF scoring mechanism. The higher score results in higherranking.
Table 2 Top 20 Phrases According to High Frequency. |
| Phrase (Frequency) | Phrase (Frequency) |
|---|---|
| cell line (37507) | reactive oxygen species (5160) |
| gene expression (37001) | central nervous system (4418) |
| amino acid (35165) | smooth muscle cell (3439) |
| transcription factor (25626) | protein protein interaction (3286) |
| cancer cell (25605) | single nucleotide polymorphism (2535) |
| stem cell (22567) | tumor necrosis factor (2482) |
| growth factor (17531) | genome wide association (2386) |
| signaling pathway (16597) | case control study (2269) |
| cell proliferation (14203) | false discovery rate (2209) |
| meta analysis (12647) | innate immune response (2133) |
3.3.2 Clustering module
In this module, we firstly apply VSM (Yang & Pedersen, 1997) to represent citation sentences and use TF-IDF (Salton & Yu, 1973) to calculate feature weights. In VSM, each citation sentence is equivalent to a document and expressed as sj = sj (t1,w1j;…ti,wij…;tm,wmj), where ti is the ith feature item, wij is feature weight of ti in the jth sentence, meanwhile, 1 ≤ i ≤ m, 1 ≤ j ≤ N, m and N are the number of feature items and citation sentences. The formula of TF-IDF is shown as (1).
\[w_{ij}=tf_{ij}*idf_{i}= tf_{ij}*log (\frac {N}{n_{i}}+0.01) \ \ (1) \]
Where tfij is frequency of ti in sentence sj, and ni represents the number of sentences where ti is located.
Next, bisecting K-means, Lingo and STC, built-in Carrot2, are used to cluster the retrieved citation sentences respectively. The cluster results will be used for the next step of cluster labels generation. Since VSM represents documents in a high dimension, which can cost efficiency of clustering algorithms, we adopt NMF algorithm (Lee, 2000) to reduce dimensions. This algorithm obtains non-negative matrix after decomposing term-document matrix. It can be described as that for non-negative matrix Am*n, we need to find non-negative matrix Um*r and Vr*n, which should satisfy the following formula:
Am*n ≈ Um*r × Vr*n (2)
Where Um*r is the base matrix, Vr*n is the coefficient matrix, and r is the number of new feature items. When r is less than m, we can replace Am*n with Vr*n to achieve dimensionality reduction.
In bisecting K-means, we will use coefficient matrix to calculate similarity between citation sentences and clustering centroids. Each sentence is assigned to the most similar cluster. Labels of each cluster are individual words which are three feature items with the greatest weight in the cluster. In this algorithm, three main parameters are set as follows: the number of new feature item r = 30, the number of clusters C = 25, the maximum number of K-means iterations Iter = 15. As long as reaching C or Iter, bisecting K-means will end.
Lingo algorithm (Osiński & Weiss, 2005b) firstly extracts key phrases by the suffix sorting array and the longest common prefix array. The number of words in each key phrase is between 2 and 8. Then it builds term-phrase matrix based on the key phrases, where feature weights are calculated by TF-IDF. Thirdly, it constructs base vectors according to the term-phrase matrix and the base matrix through NMF. Finally, each base vector gets corresponding words or phrases to form one cluster label, and sentence containing label’s words will be assigned to the corresponding cluster. In Lingo, the number of clusters C is based on a very simple heuristic method, which is shown in formula (3). And in the base matrix, r = C.
\[C=\frac {dC}{10}* \sqrt{d} \ \ （3）\]
Where dC denotes desired cluster count and d means the number of documents on input. Here, we set dC to 30.
STC algorithm (Stefanowski & Weiss, 2003) is based on Generalized Suffix Tree, not using NMF, which recognizes key words and phrases that occurred more than once in citation sentences. The maximum number of words in each key phrase is 4. Then each key words and phrases are used to come into being one base clusters. There may be many same citation sentences in two clusters, while the cluster labels are different. So, we merge these base clusters to form final clusters in order to decrease overlap rate of citation sentences between clusters. In STC, some parameters are set as follows: the maximum number of clusters C = 15, the maximum number of words and phrases in each cluster labels m = 3, the threshold of base clusters to merge t = 0.6.
3.3.3 Cluster labels generation
In clustering process, it is possible that some cluster labels are semantically similar to each other, for example, labels like “data mining method” and “data mining approach” for the search term “data mining”. To improve experimental accuracy, similar cluster labels are merged when CitationAS uses clustering algorithms. We apply three methods to calculate semantic similarity between labels by using Word2Vec (Mikolov, Le & Sutskever, 2013) and WordNet (Fellbaum & Miller, 1998).
1) Similarity Computation Based on Word2Vec
Word2Vec is a statistical language model based on corpus. It applies neural network to get word vectors, which can be used to compute similarity between words. Given the phrase P, we assume that it is made up of word A, B and C. Then we can get the ith dimensional representation in the phrase P, namely \(\frac{1}{l} \sum_{i=1}^{L_{en}}(a_{i}+b_{i}+c_{i}) \), where L means the number of words in P (Berry, Dumais & O’Brien, 1995). Finally, we use cosine measure to compute similarity between phrases. The formula is shown as (4).
\[Sim(p_{1},p_{2})= \frac{\sum_{i=1}^n p_{1i}✖ p_{2i}}{\sqrt{\sum_{i=1}^n p_{1i}^2}✖\sqrt{\sum_{i=1}^n p_{1i}^2}} \ \ \ (4) \]
2) Similarity Computation Based on WordNet
WordNet is a semantic dictionary and organizes words in a classification tree, so semantic similarity between words can be calculated by path in the tree. The formula is shown as (5).
sim(w1, w2) = 1/distance(w1, w2) (5)
Where distance(w1, w2) denotes the shortest path between words in the tree (Rada, Mili, Bicknell & Blettner, 1989).
Then, similarity between phrases can use formula (6) to calculate.
\[Sim(p_{1},p_{2})= \sum_{i=1}^{L_{p1}} \sum_{J=1}^{L_{p2}} \frac{sim(p_{1i},p_{2i})}{L_{p1} × L_{p2}} \ \ (6)\]
Where p1 and p2 represent phrases, Lp1 and Lp2 mean the number of words in phrases, sim(p1i, p2j), calculated via formula (5), means the similarity between words in p1 and p2.
3) Similarity Computation Based on Combination of Word2Vec and WordNet
We linearly combine Word2Vec and WordNet to obtain a new similarity calculation method. The formula is shown as (7), where α is a weight and we set it to be 0.5.
sim(p1, p2) = αsimword2vec(p1, p2) + (1 - α)simwordnet(p1, p2) (7)
3.3.4 Automatic survey generation
In CitationAS, after several steps mentioned above, we can get many clusters. The last step is that clusters are sorted according to their sizes and each cluster is taken as a paragraph in the final survey. To choose important citation sentences
from each cluster, we design the following methods to calculate a sentence score. The higher score is, the higher ranking of sentence in the paragraph.
from each cluster, we design the following methods to calculate a sentence score. The higher score is, the higher ranking of sentence in the paragraph.
1) TF-IDF-based sentence extraction
Since each citation sentence is represented by the term-document matrix, we can obtain the sentence score (Zechner, 1996). For the sentence s = s (t1,w1;…ti,wi…;tm,wm), its score is computed via the following formula (8):
\[w_{TF-IDF}=\sum_{i=1}^m w_i/m （8）\]
Thereby, we rank citation sentences in each cluster based on their scores. The sentences with higher scores will be used as survey sentences.
2) MMR-based sentence extraction
Maximal Marginal Relevance (MMR) (Carbonell, Jaime & Goldstein, 1998) method considers similarity of the selected sentence to search term and redundancy to sentences in survey. Calculation method of the sentence score is shown in formula (9).
\[W_{MMR}=max_{{s_{i} \in C-S}}[\beta sim（s_{i},q）-(1-\beta)max_{{s_{j}} \in S }sim(s_{i},s_{j})] \ \ (9)\]
Where C denotes the set of citation sentences in clusters, S denotes the set of survey sentences, so si ∈C - S denotes the set of those not selected as survey sentences. si means current citation sentence and q means search term. β is a parameter and generally set to be 0.7.
This method first selects the sentence with maximum MMR value as the survey sentence from the candidate sentence set, then it recalculates MMR values of the rest. It keeps selecting sentences until the set of candidate sentences is empty.
3) Sentence-location-based sentence extraction
Citation sentences have different importance and play diverse roles in different locations of citing papers. Maricic, Spaventi, Pavicic and Pifat-Mrzljak (1998) classifies the citation locations with respect to one of the sections of the citing paper: “Introduction”, “Method(ology)”, “Results”, “Discussion/Conclusions”, as IMRD. And they assigned the values of citation sentences in IMRD to 15, 30, 30, and 25, respectively. In our work, we adopt and modify their method. In our dataset, some citation sentences may not specify which section they belong to. So we put those into “Others” section. Finally, we set the weight of IMRDO as 0.15, 0.30, 0.30, 0.20, and 0.05, which means the corresponding location weight is given when citation sentence appears in a certain section.
In a word, when considering the citation sentence location, we have two other methods to calculate the sentence score. One is combination of sentence location and TF-IDF, which shown in formula (10), the other is combination of sentence location and MMR, as shown in formula (11).
wTF-IDF_Location = wLocation * wTF-IDF (10)
wMMR_Location = wLocation * wMMR (11)
4 Experiments and Results Analysis
4.1 Evaluation Method
In this paper, we invite 2 volunteers to make manual evaluation for the generated surveys. And we assign a score between 1-5 where 5 means the survey is very comprehensive, 1 means it is very poor and has no logical. The volunteers are fifth-year undergraduate students majoring in clinical medicine. The evaluation standards are described in Table 3 .
Table 3 Evaluation Standards. |
| Score | Evaluation standards |
|---|---|
| 5 | Sentences are very smooth. Paragraphs and surveys are very comprehensive, exist very small redundancy and can fully reflect retrieval topics. The logical structure of survey is reasonable. |
| 4 | Sentences are relatively smooth. Paragraphs and surveys are relatively comprehensive, exist relatively small redundancy and can relatively reflect retrieval topics. The logical structure of survey is relatively reasonable. |
| 3 | Sentences are basically smooth. Paragraphs and surveys are basically comprehensive, exist certain redundancy and can basically reflect retrieval topics. The logical structure of survey is basically reasonable. |
| 2 | Sentences are not smooth enough. Paragraphs and surveys are not comprehensive, exist relatively high redundancy and cannot reflect retrieval topics enough. The logical structure of survey is confusing. |
| 1 | The smoothness of sentences becomes very poor. Paragraphs and surveys are far from comprehensive, exist very high redundancy and cannot fully reflect retrieval topics. There is no logical structure in the survey. |
In the evaluation process, we give volunteers the surveys generated by CitationAS and the corresponding search terms for each survey, but we do not let them know the generated method behind each survey. Volunteers are demanded to evaluate each paragraph in the survey, thus we can get an average score of each survey. Since each survey is obtained by one of the methods, the average score of each method can be obtained as well.
4.2 User Interface of CitationAS

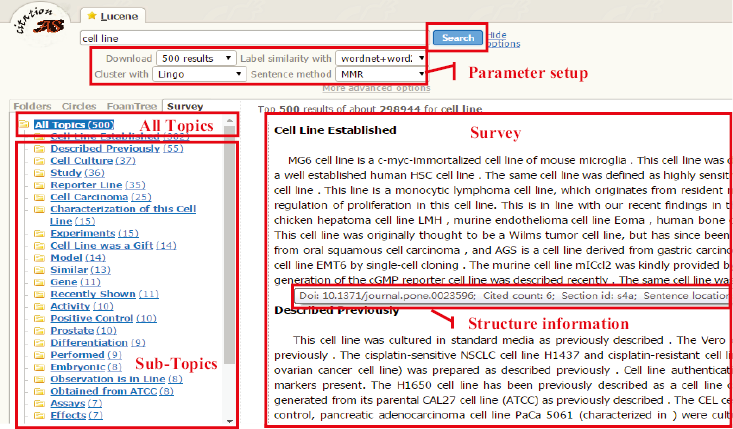

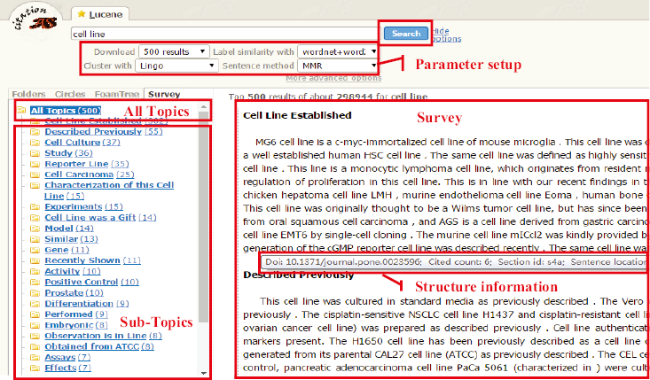

The user interface of CitationAS is shown in Figure 2 . Users can input search terms and set parameters to get a survey. The parameters (“Parameter setup” section) are about the number of citation sentences for clustering, clustering algorithms, cluster labels generation methods and important sentence extraction approaches. When users click “search” button, sub-topics, which are cluster labels and the number of sentences in each cluster, will appear in the left frame. Then users can click “All Topics”, the survey will be presented on the right side, where the bold fonts are titles and others are content in survey’s paragraph. Survey sentence’s structure information will be displayed, when users put the mouse on it.
Figure 2. User Interface of CitationAS. |
4.3 Results Analysis
4.3.1 Results of LDA
We applied LDA to extract topic distribution from citation content dataset, and the results were illustrated in Table 4 . In each topic, topic words were sorted in descending order by their weights and we chose the top 10 topic words with the highest weight.
From Table 4 , we could find that the dataset was mainly related to biomedical field, including protein and amino acid study, diseases study (for example, tolerance, chronic diseases and diabetes), bacteria and virus study (for example, HIV), gene sequence study, analytical method and models, and cell expression and activity. Through calculation, citation sentences on biology and life sciences accounted for 81.02%, indicating that the generated surveys would be about biomedicine. And the results obtained by LDA were consistent with the field reflected by search terms.
Table 4 Topic Distribution in Dataset. |
| Topic No. | Topic words |
|---|---|
| 1 | protein, domain, binding, structure, membrane, residue, acid, interaction, site, amino |
| 2 | disease, patient, increase, risk, study, disorder, chronic, factor, blood, clinical |
| 3 | bacteria, gene, strain, plant, resistance, species, report, found, host, pathogen |
| 4 | study, health, patient, year, hiv, treatment, country, population, report, clinical |
| 5 | gene, sequence, data, analysis, based, identified, study, expression, number, region |
| 6 | model, method, data, based, test, analysis, value, number, calculated, approach |
| 7 | cell, expression, tissue, mice, differentiation, development, human, stem, bone, mouse |
| 8 | acid, increase, level, activity, glucose, concentration, stress, enzyme, insulin, effect |
| 9 | study, process, task, response, visual, effect, memory, information, social, related |
| 10 | cell, signalling, pathway, activation, receptor, role, factor, protein, expression, apoptosis |
4.3.2 Results of automatic survey generation
In this part, we show the results of label and survey generation. In the cluster labels generation test, we applied Davies-Bouldin (DB) and SC clustering index (Fahad et al., 2014) to find the best label generation method for each clustering algorithm. SC index is equal to the ratio of clusters’ separation and compactness. If DB value is lower and SC value is higher, clusters are more compact and further from each other. The more number of search terms for consistency between DB and SC is, the better clustering results obtained by the method will be. Through experiments, we found combination of Lingo and Word2Vec had better clustering results with 8 search terms. When combining STC with WordNet, there were 6 search terms. If combining bisecting K-means with Word2Vec, we found a total of 9 search terms. However, combination of Word2Vec and WordNet did not have good performance compared with applying them separately on the three clustering algorithms. The quality of some cluster results based on this method was between WordNet and Word2Vec. Finally, we used Lingo with Word2Vec, STC with WordNet and bisecting K-means with Word2Vec to carry out the final automatic survey generation experiment.
In this paper, we chose 20 search terms and each of them generated surveys in 12 different approaches. Finally, 240 surveys were produced. Meanwhile, compression ratio was set to be 20%, meaning that the final survey length was equal to the number of retrieved citation sentences multiplied by 20%. In the experiments, we set the number of retrieved citation sentences to 500. Approach of Evaluation Method part was used to score the generated surveys. In order to describe concisely the selected survey generation approaches, we omitted Word2Vec and WordNet in Table 5 , Table 6 and Figure 3 . For example, method Lingo-Word2Vec-TF-IDF would be described as Lingo-TF-IDF. The following are the evaluation results of generated surveys.
Table 5 Six Methods Rankings based on Two Volunteers. |
| Ranking | Volunteer A | Volunteer B |
|---|---|---|
| 1 | STC-TF-IDF | Lingo-TF-IDF |
| 2 | Lingo-TF-IDF | Lingo-MMR |
| 3 | STC-MMR | STC-MMR |
| 4 | Lingo-MMR | STC-TF-IDF |
| 5 | bisecting K-means-MMR | bisecting K-means-MMR |
| 6 | bisecting K-means-TF-IDF | bisecting K-means-TF-IDF |
Table 6 Six Methods Rankings based on Two Volunteers when Considering Sentence Location. |
| Ranking | Volunteer A | Volunteer B |
|---|---|---|
| 1 | Lingo-MMR | Lingo-MMR |
| 2 | Lingo-TF-IDF | Lingo-TF-IDF |
| 3 | STC-TF-IDF | STC-MMR |
| 4 | STC-MMR | STC-TF-IDF |
| 5 | bisecting K-means-TF-IDF | bisecting K-means-MMR |
| 6 | bisecting K-means-MMR | bisecting K-means-TF-IDF |
When considering sentence location, rankings of six methods were shown in Table 6 . As it showed, approaches of Lingo-Word2Vec-MMR and Lingo-Word2Vec-TF-IDF had the same high rankings in two volunteers’ scores, which indicated that volunteers both agreed these two methods were better. In the third and fourth rankings were surveys generated by STC-WordNet methods. And the surveys using bisecting K-means and Word2Vec were in the fifth and sixth rankings. We could also find that, in the last four rankings, two volunteers had different ranking results on the TF-IDF and MMR methods, which were used to extract important sentences. But they had the same rankings on STC-WordNet and bisecting K-means-Word2Vec.
Comparing Table 5 and Table 6 , we found that, when considering sentence location, rankings of six methods were varied, indicating that location information affected quality of final surveys. Combination of bisecting K-means, Word2Vec, TF-IDF or MMR always had the lowest rankings, meaning that quality of final surveys generated by these methods were relatively poor. Seeing from two tables, sentence location had bigger influence on the surveys quality for volunteer A. However, it had a small effect for volunteer B.
To make a comprehensive analysis about 12 methods and the effect of sentence location information on survey quality, we averaged the scores of two volunteers. As illustrated in Figure 3 , no matter whether sentence location was considered, scores obtained by these methods were close to 3, indicating the generated surveys were comprehensive and the surveys’ logical structure was basically reasonable.
Figure 3. Average Scores of Different Methods. |
First, we analysed the situation without considering sentence location. Combination of Lingo, Word2Vec and TF-IDF acquired the highest survey quality which was 3.07. When it came to TF-IDF or MMR, quality of survey generated based on combination of Lingo and Word2Vec was better. The reason may be that Lingo algorithm uses abstract matrix and the longest common prefix array when obtaining clustering labels, so that it can get more meaningful labels. In addition, the citation sentence is assigned to the cluster containing corresponding labels, instead of calculating similarity between sentence and cluster centroid. Compared to TF-IDF, we also found that survey quality was higher based on MMR after using combination of bisecting K-means and Word2Vec. Survey quality obtained by combination of STC, WordNet and TF-IDF or MMR was almost same, which indicated that sentences selection approaches did not have much impact on survey quality based on this clustering algorithm.
Next, when considering sentence location, we could find that the overall scores of survey quality had been improved. The survey quality obtained by Lingo-Word2Vec-MMR was the best, whose score was 3.38. Compared with the method of no sentence location, survey scores had the same trend in TF-IDF or MMR method, which stated that sentence location information did not change the rankings of automatic survey generation methods in the comprehensiveness. The combination of bisecting K-means, Word2Vec, TF-IDF or MMR produced weaker results. And the survey quality obtained by combination of STC, WordNet, TF-IDF or MMR produced almost the same scores.
5 Discussion
According to the above results, we find that the survey quality can be improved after considering citation sentence location. In different sections, the importance of citation sentence is different, and by giving it different weights can change its score of being selected as a survey sentence, which will change the final survey quality. The sentence location weights set up here emphasize that sentences in Method(ology) and Result sections are the most significant, Discussion/Conclusions section comes second, and Introduction section is relatively unimportant. The experimental results reflect the rationality of this weight setting method.
In average scores of different methods, Lingo and STC belong to soft clustering, however, bisecting K-means is hard clustering. In soft clustering, a sentence may be assigned to a number of clusters. And the sentence may contain more than one topic. Therefore, soft clustering can better reflect the sentence’s diverse topics. Then it can get a higher survey quality. Lingo algorithm uses non-negative matrix factorization to obtain latent semantic cluster labels, which makes the generated survey contains richer content. Consequently, compared with STC algorithm, the survey quality made by Lingo is better. However, hard clustering method assigns the sentence to only one cluster, which inevitably eliminates other topics within a sentence and affects the clustering results, reducing the survey quality.
For Lingo and STC algorithms, there is no definite conclusion whether or not using TF-IDF or MMR for the sentence importance. The reason may be that these two algorithms acquired meaningful cluster labels through their own approaches, and then assigned sentences to the clusters according to the labels. However, this procedure does not involve the similarity calculation between sentences. So, it is not clear which important sentence extraction method is better for these two clustering algorithms. Especially for STC algorithm, survey quality is almost the same obtained by TF-IDF and MMR whether or not considering sentence location. The possible reason is that STC identifies key words and phrases based on generalized suffix tree and frequency. After getting cluster results, citation sentences in each cluster contain some same words and phrases and the meaning of sentences may be very similar. Hence, when using TF-IDF and MMR to calculate sentence importance, quality of generated survey may be same. For bisecting K-means algorithm and Word2Vec label generation method, results suggest positively using MMR method to calculate the sentence score. This is probably because bisecting K-means algorithm divides citation sentences according to similarity between cluster centroids and sentences. Meanwhile, MMR also considers similarity between citation sentences. However, TF-IDF ranks sentences only by their weights.
Finally, the experiments show that combination of Word2Vec and WordNet does not perform well. The reason may be that we only used linear function and set equal weights to combine them, which is too simple to bring out their strengths. In addition, we do not start from methods themselves, which means that we do not combine them based on their fundamentals.
6 Conclusion
CitationAS is built to automatically generate surveys. It mainly contains three components. The first is clustering algorithms including bisecting K-means, Lingo and STC. The second is cluster labels generation methods, Word2Vec, WordNet and the combination of them. The last one is automatic survey generation approaches based on TF-IDF and MMR. We also consider sentence locations when calculating sentence scores. Citation sentences are applied as the source data. We also use LDA to acquire topic distribution of dataset, which shows that dataset is mainly about biomedical field. Through experiments, we choose the best label generation approach for each clustering algorithm from semantic level, and then they are used in automatic survey generation. We also find that combination of Word2Vec and WordNet does not improve system performance compared with using them separately. Finally, automatic surveys obtained by 12 methods are positive, which means that sentences are basically smooth, survey content is basically comprehensive and reflects the retrieval topic, but some have redundancy. In addition, sentence location information can improve the generated survey quality. For soft clustering, such as Lingo and STC, survey quality may be better. We also note that the newly created knowledge of some article may concentrate on sentences with no citing. So those sentences may not be represented in the generated surveys which relying only on citing sentences.
In our future work, we will apply ontologies to calculate semantic similarity between labels and use deep learning to improve quality of generative survey. And citation frequency can be taken into account when calculating sentence importance. We will also select new approach to combine WordNet and Word2Vec in order to take their advantages. Besides, automatic evaluation can be made to avoid subjective or wrong judgements by human.
Author Contributions
J. Wang (wangjie1342@qq.com) implemented the experiment, processed and analyzed data, designed system and drafted paper. C.Z. Zhang (zhangcz@njust.edu.cn, corresponding author) collected data, proposed the research idea and revised the paper. M.Y. Zhang (mf1714065@smail.nju.edu.cn) revised the paper. S.H. Deng (sanhong@nju.edu.cn) revised the paper.
