In the first stage, the research scope was defined as being three areas from renewable energy sources: photovoltaic energy, wind energy, and biomass energy. These three areas were chosen because they account for over 60% of the total jobs generated in renewable energy generation plants (IRENA, 2018). Considering these three areas, the research was structured to respond adequately to the suggested questions and enabled the measurement of research density, pointing out the scientific development of each one of those three renewable energy sources.

At this stage, the search filters were defined to enable a search for articles with a potential possibility to respond to the objective of the article. Considering that the objective of this article is to research the development and the density of the research that involves the three types of generation, the search terms were defined as solar or photovoltaic energy, wind energy, and biomass energy. However, after initial tests on the database, it was found that using the terms referring to the three energy sources, the scope of the themes studied is wide, making it difficult to disclose research related to management, performance evaluation, and decision making related to these energy sources. This way, the search term “renewable energy” was added with the Boolean operator AND to refine the searches and to enable the recovery and inclusion of a greater number of articles with an approach aimed at the management of those energy sources considering them as renewable energy sources. Research areas in the Scopus database were limited to “Energy; Engineering; Decision Sciences; Business, Management and Accounting; Economics Econometrics and Finance”, since a relationship can be established between the technologies used to generate energy through renewable sources and business management through performance evaluation, cost and investment management, business diagnosis and decision making. The first papers published in these areas were from the 1970s, but the period considered was the last 15 years, where a considerable increase in publications occurred only in 2008 and 2009 (see Figure 2 in Section 3.1) with the approval by the European Parlament on April 23, 2009, of the Directive 2019/28/CE (Parlamento Europeu, 2009). So, starting the analysis from 2005 onwards, it was possible to study the themes considering this visible increase in the publications. Those search filters are presented in Table 1.

In Stage 3 the search in the Scopus database was done, and with the search filters detailed in Table 1, the number of retrieved articles was:

$\bullet$ Wind energy: 3,121 articles;

$\bullet$ Photovoltaic energy: 4,744 articles;

$\bullet$ Biomass energy: 332 articles.

Based on the retrieved articles from Stage 3, Stage 4 was divided into four analyses based on the four questions proposed by Light, Polley, and Börner (2014). To answer these questions it was proposed to use a science mapping analysis developed through the following tasks (Börner, Chen, & Boyack, 2005; Cobo et al., 2011b, 2012):

$\bullet$ Preprocessing: data cleaning to eliminate errors and duplicated information such as duplicate articles, names, and other information. This task can occur either directly in the database or in the software used for analysis;

$\bullet$ Network extraction: relations between two units, such as words or authors, are established;

$\bullet$ Normalization: use of data normalization procedures, as an equivalence index, to enable reliable data analysis (Baierle et al., 2020);

$\bullet$ Mapping: application of techniques to build the sciences maps and graphics;

$\bullet$ Analysis: discovering useful knowledge from data, networks, and maps (Cobo et al., 2011b), such as node degrees, edges heights, or other measures;

$\bullet$ Visualization: representation techniques to show a science map enabling analysis.

These tasks were performed for the development of the analyzes presented in Section 3.

Microsoft Excel software was used to perform graphics to allow temporal and geographic analysis. Another tool used to answer the research questions was SciMAT, which is a freeware software used for mapping the science, allowing researchers to analyze the intellectual, social and conceptual evolution of a specific scientific field (Cobo et al., 2011a). SciMAT is composed of three modules to develop a science mapping approach: the first to manage entities knowledge, the second to carry out the science mapping analysis, and the third to generate results and maps (Martínez et al., 2015). After importing data in ISI, RIS, or csv format, the SciMAT workflow can be divided into four stages (Cobo et al., 2012; Cobo et al., 2015):

a) Build the data set: configuration of the periods, the aspects to analyze, and the data to be used;

b) Create and normalize the network: the network is built using co-occurrence or coupling relations, filtering to show only representative items;

c) Apply a clustering algorithm to get the map: selection of the clustering algorithm to be used;

d) Perform a set of analyses: the configuration and execution of the analyses.

Four types of maps that SciMAT generates were used in this research: overlapping maps (presented in Figure 2), evolution maps (presented in Figures 6, 7, and 8), cluster’s network and strategic diagrams (presented in Figure 9) (Kipper et al., 2020). With these maps, it is possible to highlight some starting points for other research, such as through the evolution maps, where the researcher can search for a trend based on connections not yet consolidated on the map, or even search for the co-occurrence of words that cannot be explained intuitively. Through the clustering algorithms it is possible to identify groups and subgroups in a research area according to the selected similarity criteria (da Costa et al., 2019). In this paper, the SciMAT period was subdivided into five periods of three years each, providing a punctual analysis of the evolution of the words used and clarifying the evolutionary characteristics of the research.

To research between authors and answer the “Who” question, the Sci2 Tool was used. The Sci2 Tool is a set of computational tools designed to study science (Guler et al., 2016) through network analysis, providing a visualization of datasets at the micro, meso, and macro levels (Light, Polley, & Börner, 2014; Sci2 Tool, 2019). The first analyses involving networks were the studies of citations networks (Newman, 2001a, 2001b), later being developed as maps of authors that help to identify who contributed to the science, homogeneity vs. heterogeneity, cause and effect, speed of science, monitoring and evaluating the evolution of areas for further scientific research (Börner et al., 2012). Author networks are important but do not alone provide enough information to conclude whether an author is relevant in his or her research area (Nara et al., 2019). In the authors’ networks of this article, the names of the authors who centralize the largest research groups in each theme are highlighted, but it should be noted that although smaller, the other networks also have scientific relevance in the topics addressed. In this research, author networks are aggregated with other analyses to obtain a comprehensive understanding of renewable energy research areas.

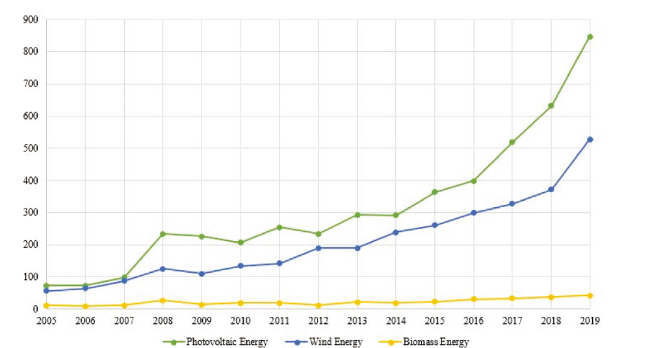

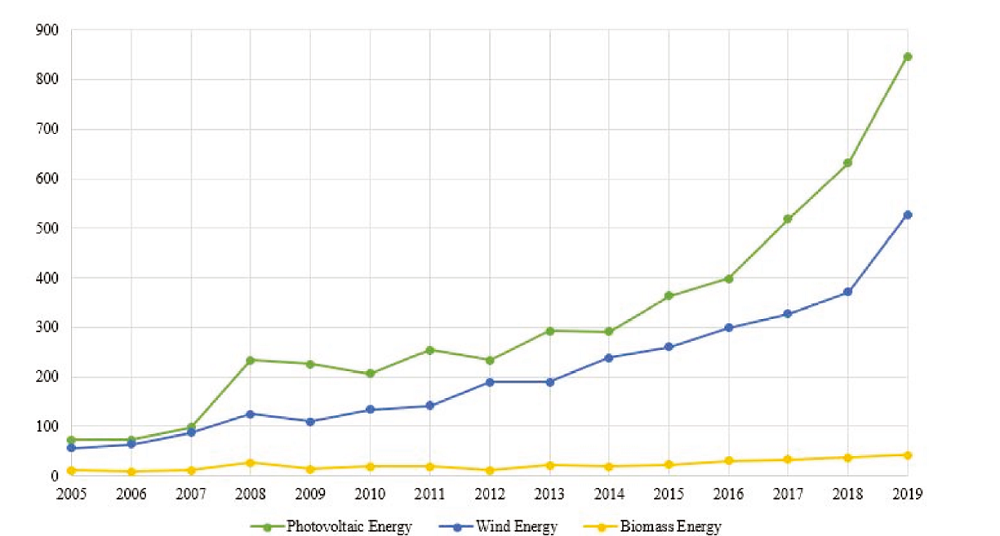

The first question answered, “When?”, brought a temporal analysis, as already mentioned in Section 2.2, where the period considered in the searches was the last 15 years, and this choice is justified by the graph shown in Figure 1.

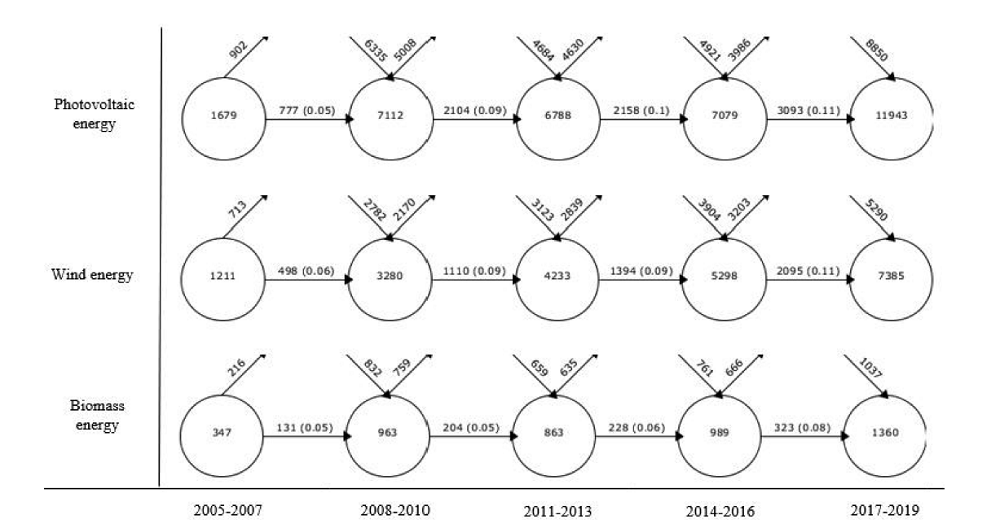

Figure 2 presents an overlapping map elaborated through SciMAT and adapted to show all pertinent information. This graphic shows the behavior of the number of words related to the three renewable energy sources in each of the following periods: 2005-2007, 2008-2010, 2011-2013, 2014-2016, and 2017-2019. The time was divided in this way to allow an evaluation of the characteristics of the words used.

From Figure 1, it is clear that photovoltaic energy has the largest number of articles and words, followed by wind energy, and—with a much smaller number— biomass energy. Figure 2 shows the number of words related to each renewable energy source per period. To obtain this comparative analysis of words by period, the metadata of the retrieved articles, excluding the references, were exported from the Scopus database in the “.ris” format and imported into SciMAT. Thus, for each type of renewable energy source researched, an analysis was carried out. Photovoltaic energy has 1,679 words in the first period, rising to 11,943 in the last period, while wind energy has 1,211 in the first period and 7,385 in the last period, and biomass energy has 347 in the first period and 1,360 in the last period. From the arrows directed to the clusters, one also perceives a great aggregation of new words into the research, as well as an exit of words of the searches from the arrows that have the direction exiting the clusters. It is noteworthy that the number of words related to research in photovoltaic energy remained nearly stable in periods two, three, and four, increasing considerably in the last period, while for wind energy research, the number of words increased gradually, and in biomass energy, the number of words in the second, third, and fourth periods remained nearly stable, only increasing in the last period.

This difference in the number of studies may be due to the difference between the systems, especially concerning the region of installation, ease, and minimum requirements. For photovoltaic energy, the direction in which the panels are installed will not prevent the system from generating energy, but will only reduce its efficiency (Daghigh et al., 2011). Solar energy is the most abundant energy on earth, and photovoltaic systems do not need a sunny day to operate, because even on cloudy days they produce electricity, but at a lower intensity than on clear days (Hassan et al., 2020). Many studies have been carried out to develop different materials for the construction of panels, generating less waste and also not allowing the system to overheat (Letcher, 2018; Salameh, New York, & Diego, 2014). From the irradiation incident on the photovoltaic module, only 15 to 20% is converted into electrical energy, hence the great efforts and studies to improve the performance (Fayaz et al., 2019). For wind power to be considered technically feasible, a minimum wind velocity of 7 to 8 m/s is required (Poole et al., 1993). Therefore, wind energy is only economically viable in places where wind conditions are good for wind turbines, making the system still unstable and less attractive than photovoltaic (Ayyarao, 2019). The concept of biomass comprises all organic matter used as energy sources, such as agricultural waste, wood, and plants. Biomass processing is very difficult due to the low calorific value, low bulk density, and high moisture content of raw materials, which seriously limits its use on a large scale (Stolarski et al., 2013; Suarez & Luengo, 2003). These facts may have been decisive, such that studies in this area have not progressed over the years.

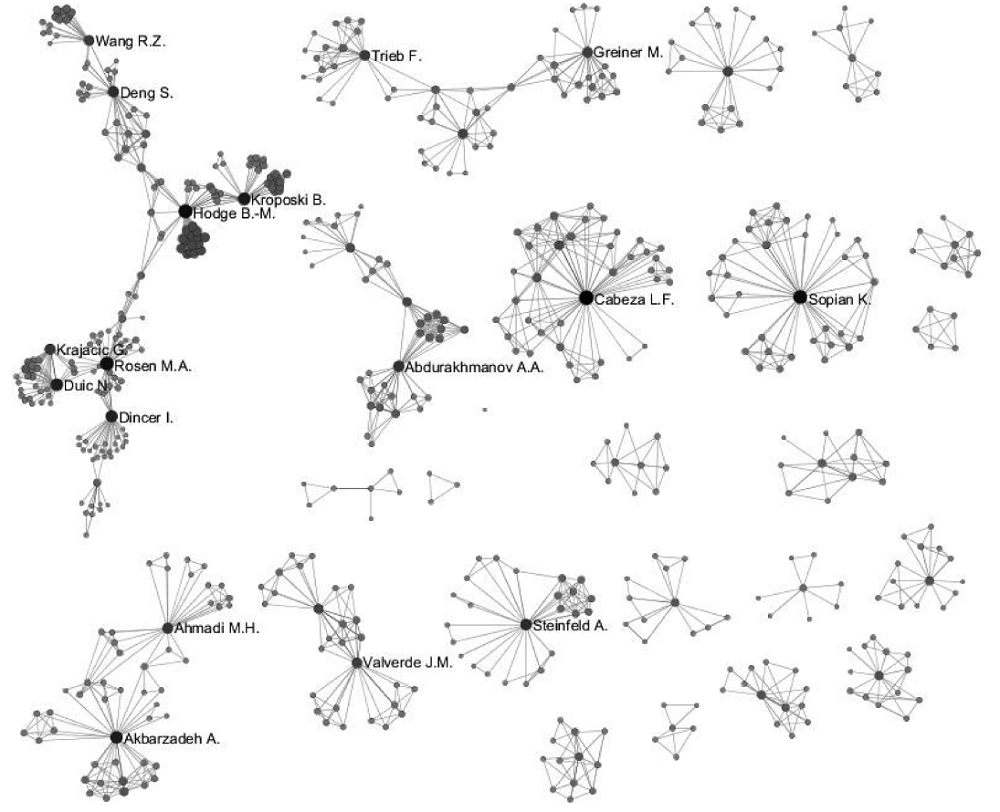

In this subsection, author network maps are presented to answer the question “Who” about the terms related to renewable energy sources. In each map of authors’ networks, a threshold was established, mentioned in the description of the figures, related to the size of the node so that the names of the authors with the greatest influence on the researched topics could appear. The first network is shown in Figure 3 and presents the author network for researchers who have more than five articles indexed in the Scopus database with the search terms “renewable energy” and “solar energy” or “photovoltaic energy”, considering also the search filters presented in Table 1. The names of the authors who appear are those with a node degree equal to or higher than 18.

There are nine networks with 17 authors with a node size equal to or greater than 18, and in a single network, there are eight authors in smaller interconnected networks with a node size equal to or greater than 18. Completing the map, another 15 smaller networks can still be viewed. Of those 17 authors, only seven authors have a node size equal to or greater than 25: Cabeza has node size 38, Hodge and Sopian have node size 34, Rosen has node size 33, Akbarzadeh and Kroposki have node size 28 and Duic has node size equal to 27.

The authors Cabeza with node degree 38 and Hodge with node degree 34 are the highest in this map. Cabeza has 12 articles related to the subject of solar or photovoltaic energy, some of them being about thermal energy storage systems (Cabeza et al., 2017; Gibb et al., 2018; Jacob et al., 2016; Peiró et al., 2018; Ruiz-Cabañas et al., 2017), key performance indicators for energy storage systems (Cabeza et al., 2015), and other correlated subjects. Hodge has seven papers indexed in Scopus about high renewable power systems (Du et al., 2018; Du et al., 2019), trends in wind and solar energy forecasting technologies (Hodge et al., 2018; Orwig et al., 2015), estimation of solar irradiance (Zhang et al., 2019), and other related articles. Sopian has 11 papers indexed in Scopus about photovoltaic thermal systems technologies (Nazri et al., 2018; Othman et al., 2013; Rukman et al., 2019), feed-in tariff policy (Bakhtyar et al., 2013; Bakhtyar et al., 2015), solar radiation prediction (Azhari et al., 2008), and other research on correlated themes. Rosen is a researcher with 16 papers on the subjects of exergetic analysis and assessment of different systems (Granovskii, Dincer, & Rosen, 2007; Hacatoglu, Dincer, & Rosen, 2011; Khalid, Dincer, & Rosen, 2015; Rezaie, Reddy, & Rosen, 2018), hybrid renewable energy systems for different applications (Krajačić et al., 2018; Maleki, Rosen, & Pourfayaz, 2017; Soltani et al., 2014; Zhang et al., 2018), and others researches on similar subjects. Akbarzadeh has 10 papers on the subject, almost all about salinity-gradient solar ponds related to electric power generation (Akbarzadeh, Johnson, & Singh, 2009; Alcaraz et al., 2018; Bernad et al., 2013; Leblanc, Andrews, & Akbarzadeh, 2010; Singh et al., 2017; Singh, Tundee, & Akbarzadeh, 2011; Valderrama et al., 2011). Kroposki and his network are linked with the network of Hodge. They have some papers in common such as those about high renewable energy penetrated power systems (Du et al., 2018; Du et al., 2019). The last author with a node degree higher than 25 is Duic with node degree 27. Duic published papers about the integration of solar energy in the energy mix, analyzing the economic and environmental implications (Pfeifer et al., 2019), energy scenarios in Malta (Busuttil, Krajačić, & Duić, 2008) and southeast Europe (Dominković et al., 2016), and other related papers. Among the smaller networks, the networks centralized by Patt, who has four articles on the topic, and the one centralized by Escobar, who has six articles on the subject can be mentioned. The network centralized by Patt researched on risks involving renewable energy projects (Komendantova et al., 2012), barriers for the expansion of electricity grids (Battaglini et al., 2012), and other related papers, while the network centralized by Escobar researched about the influence of solar energy resource assessment uncertainty in the levelized electricity cost of concentrated solar power plants (Hanel & Escobar, 2013), the impact of concentrated solar power in electric power systems (Mena et al., 2019), and other related papers. When analyzing the publications from the main and some minor research networks on the subject of photovoltaic energy, it can be said that some specific studies are dealing with aspects of management and performance evaluation of this energy source, but no articles were found related to the elaboration of modeling for decision-making in these major research networks.

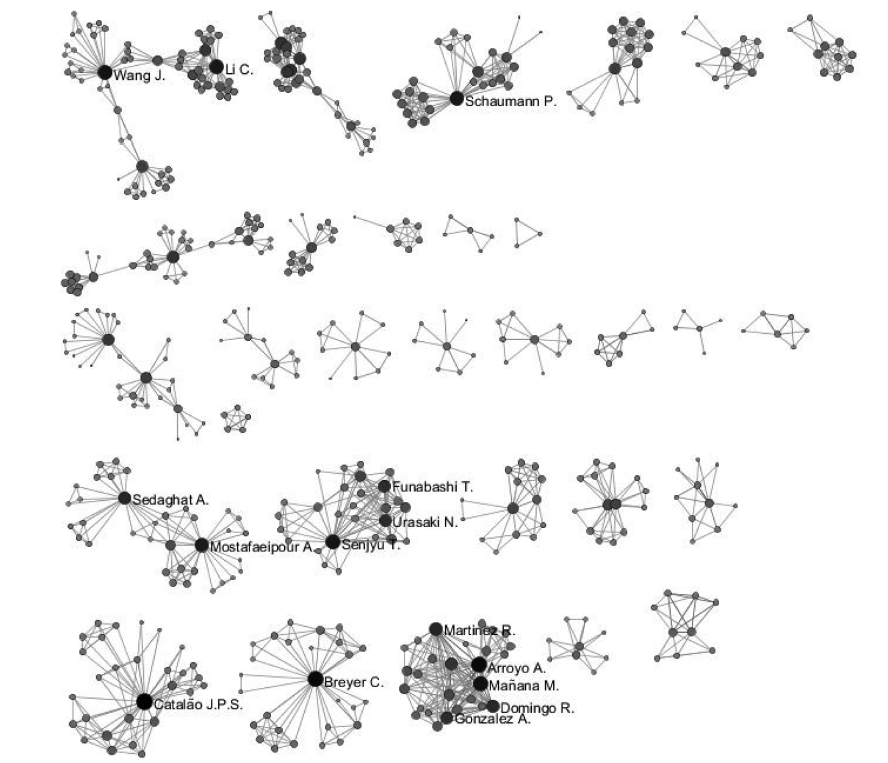

The next map of author networks, presented in Figure 4, is about wind energy. The author names shown are those with a node degree equal to or higher than 17.

There are seven author networks on the subject of wind energy with at least one author with a node greater than or equal to 17, and six authors have a node greater than or equal to 23, indicating them as the most relevant in research related to renewable energy coming from wind: Catalão with node degree 28, Breyer and Arroyo with node degree 26, Mañana with node degree 24, Senjyu and Wang with node degree 23. Completing the map, another 23 complementary networks can still be viewed.

Catalão is a researcher with 12 papers, and he leads a network in research such as Monte Carlo simulation for optimal operation in electrical systems with high renewable sources integration (Osório et al., 2015), storage of wind energy surplus (Rodrigues et al., 2015), integration of wind energy with other renewable energy sources through a model using a stochastic heuristic Multi-Objective Multi-Criteria Decision Making method (Hajibandeh et al., 2018), and other papers on related subjects. Breyer is a researcher who has published 10 papers on the subject of wind energy as scenarios for sustainable energy in Scotland (Child et al., 2019), the Aland Islands (Child, Nordling, & Breyer, 2017), and the Berlin-Brandenburg region, Germany, using a cost optimization approach (Moeller et al., 2014) and others. Arroyo has 10 papers on the subject and Mañana has nine papers on the subject, and they are the centralized nodes from a network. These authors study together the subject of CO₂ footprint reduction and efficiency increase using a dynamic rating of the electricity grid (Arroyo et al., 2018), the increase of grid integration of wind energy using ampacity techniques (Madrazo et al., 2013), and the analysis of the ampacity management in a 132 kV overhead line placed in a high-wind generation area (Madrazo et al., 2015), and other related papers. Senjyu is at the center of his network and has eight papers on the subject, including research to present an output power leveling control strategy for wind farms (Sakamoto et al., 2008; Senjyu et al., 2006), to propose a methodology for solving the generation planning problem for thermal units with wind and solar energy systems (Chakraborty et al., 2009), and other related papers. Wang has seven papers and is the center of his author network, with papers related to wind speed forecasting using several methods such as a back propagation Neural Network (Ren et al., 2014), Extreme Learning Machine, Ljung Box Q-test, and Seasonal Auto-Regressive Integrated Moving Average (Wang et al., 2015), multi-objective optimization (Yang et al., 2019), and other papers with hybrid proposals. Among the 23 complementary networks, it can be mentioned the networks centralized by Ilinca, with node degree 13, has five articles on the subject, and Fagiano, with node degree 9, has articles on the subject. The network centralized by Ilinca proposed a computer model for financial, environmental and risk analysis of a hybrid wind-diesel system with compressed air energy storage (Benchaabane et al., 2019), measured robustness as a tool to address strategic wind farm issues through multicriteria decision-making methods (Vazquez, Waaub, & Ilinca, 2013), among other research. The network centralized by Fagiano research on themes such as the problem of launching a tethered rigid aircraft for airborne wind energy generation (Fagiano & Schnez, 2017), the high-altitude wind power generation (Fagiano, Milanese, & Piga, 2010), and other related research. Among the main and in the complementary author networks, there is a trend of research aimed at technologies related to the production of wind energy, the materials used, wind speed forecasting, prediction of energy scenarios in different locations, or aspects related to the deployment and production cost of this energy. From this analysis, it can be said that only one of the main research networks in this theme has articles published with some relation to the management of wind energy installations.

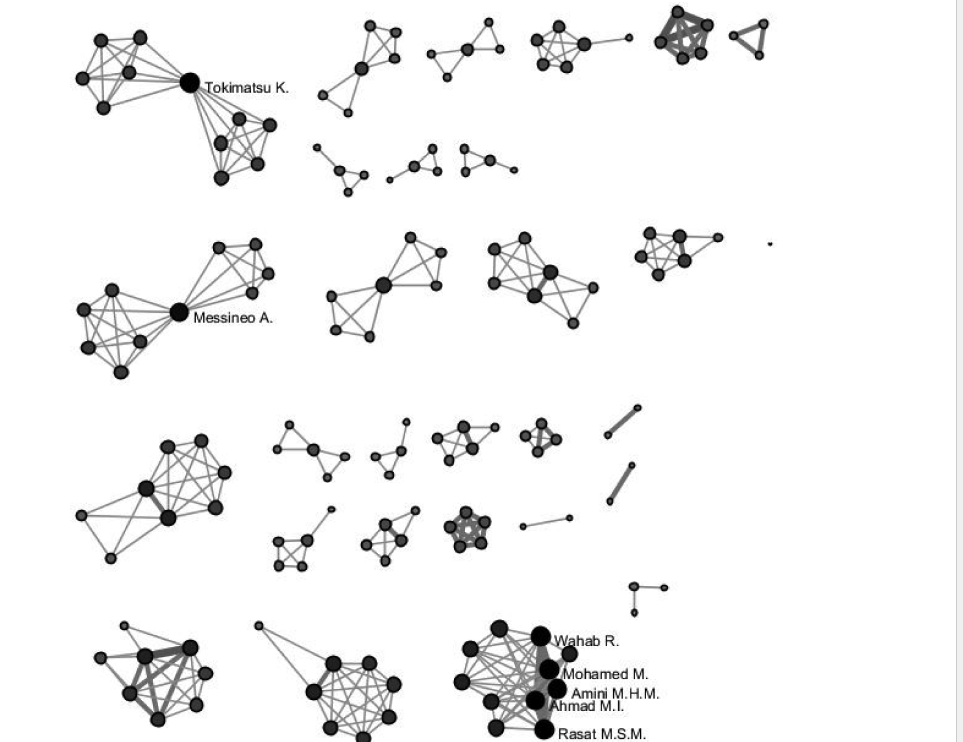

Figure 5 presents the author network map for biomass energy as a renewable energy source, and the names that appear are authors with node degrees equal to or higher than 8.

From the elaborated map, we can see that few research networks operate in the area of biomass energy as a source of renewable electricity generation. There are three networks where there is at least one author with a node equal to or greater than 8, and only two have authors with a node greater than or equal to 10: these authors are Tokimatsu with node size 10, and the authors of the same network Wahab, Mohamed, Rasat, Amini, and Ahmad, all with node equal to 10. Completing the map, another 25 complementary networks can still be viewed.

Tokimatsu has two papers on the subject that investigate people’s understanding of biomass energy (Biddinika et al., 2017), and global zero-emissions scenarios (Tokimatsu et al., 2016). The other five authors in the same network, Wahab, Mohamed, Rasat, Amini, and Ahmad, published two papers together, one about palm oil (Sharizal Sirrajudin et al., 2016), and the one about wild Leucaena Leucocephala species (Rasat et al., 2016) as a biomass energy source. Among the researches carried out by the other networks of authors, those of the network of Shahbaz which researched about the environmental Kuznets curve for CO₂ emissions in 11 countries (Sinha, Shahbaz, & Balsalobre, 2017), the specification of the environmental Kuznets curve for the US economy by accounting for the presence of a major renewable energy source and trade openness (Shahbaz et al., 2017). It can be noticed that the author networks have articles about biomass as a source of renewable energy, but these research works are not directed at the transformation of biomass into electricity.

This subsection was elaborated to answer the question “What?”, and to do this, the SciMAT software was used. The year range used in Figures 6, 7, and 8 was divided into the same five periods used in Figure 2 (2005-2007, 2008-2010, 2011-2013, 2014-2016, and 2017-2019). For Figures 6, 7, 8, and 9, a minimum number of words’ occurrences was used, making it possible to adequately represent the main words and relationships between them in each period. Table 2 shows these minimum numbers of occurrences. The other steps of the analyzes carried out in SciMAT were the following: (i) unit of analysis: words; (ii) kind of matrix: co-occurrence; (iii) normalization measure: equivalence index; (iv) clustering algorithm: simple centers algorithm; (v) document mappers: core mapper; (vi) quality measures: h-index, g-index, q2-index, hg-index, and average citations; (vii) measures for the longitudinal map: equivalence index.

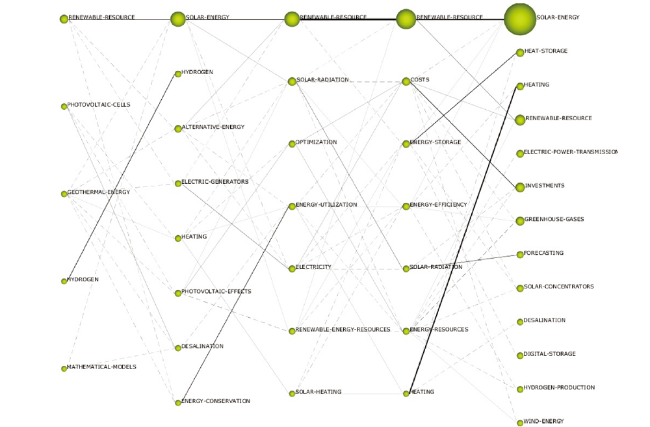

In evolution maps shown in Figures 6, 7, and 8 there are two types of lines connecting the circles of different periods: the continuous lines indicate a strong and direct connection between the words, while the dashed lines indicate the weaker relationship trends between words. In this way, the word analysis starts with Figure 6, which shows the words map for photovoltaic energy.

In the periods analyzed, renewable resources and solar energy were the strongest words that appear, also having a strong link between themselves. These words also have a connection with the words or terms: alternative energy; electric generators; energy conservation; solar radiation; electricity; renewable energy resources; and energy storage. In the development of these research works, new words appear, such as costs strongly linked to renewable resources (Haseeb et al., 2019) and investments. Solar radiation is strongly connected with forecasting (Hodge et al., 2018; Orwig et al., 2015), energy storage linked to solar concentrators (Cabeza et al., 2017; Gibb et al., 2018; Jacob et al., 2016; Peiró et al., 2018; Ruiz-Cabañas et al., 2017). Other strong connections are between: energy conservation and energy utilization; energy storage and heat storage; optimization and energy resources; and photovoltaic effects and optimization. Most of the aforementioned co-occurrences can be explained intuitively, but among the less intuitive ones, which can be further explored, the connection between the photovoltaic effects concept and optimization techniques stands out, which may be an interesting research gap. In this map, only the words costs and investments give an idea that there are some articles related to management and decision-making and photovoltaic energy. It can be said that studies concerning the management, decision-making, and performance evaluation of this renewable energy source are attracting more researchers since they have become important to support the correct direction of the investments and the technology implemented.

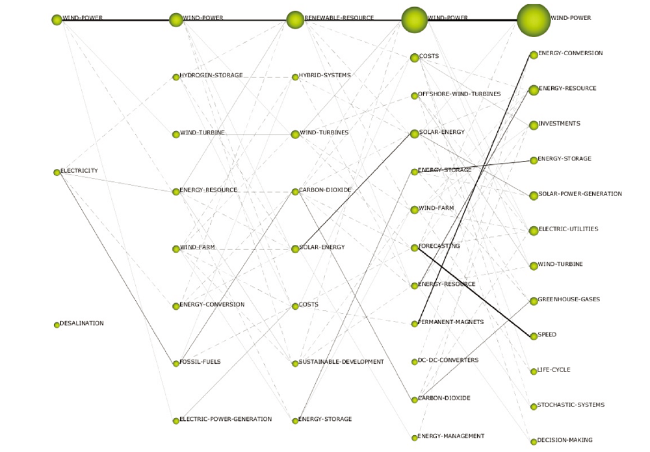

Figure 7 presents the word relations for the fifth period for wind energy research.

In this figure, it can be seen that wind power and renewable resources were the most important terms. Besides, there is a trend in periods one and two of talking about wind power and electricity as energy resources, then in period three there begins to be a concern with renewable resources, carbon dioxide, sustainable development (Hu et al., 2017) and costs (Haseeb et al., 2019). In periods four and five there is a shift to discussing technologies such as DC converters, permanent magnets, and wind turbines. In periods four and five there appear the strongest connections between: forecasting and speed; permanent magnets and energy conversion; and carbon dioxide and greenhouse gases. Also, in these periods there begins to be a concern with investments (Martí-Ballester, 2019), energy management, costs, and decision-making. This reveals that over the last ten years, research has been deepening and considering more terms and more of the variables that are part of a system or plant for renewable energy generation. The advancement of studies of the variables involved gives rise to the need for management and control of these variables, and in that sense, the decision-making (Hajibandeh et al., 2018) term only appears in the last period, proving that there is a research gap that is only in the last few years beginning to be explored.

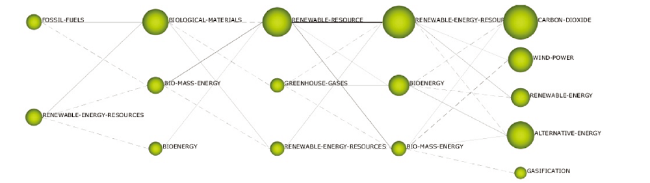

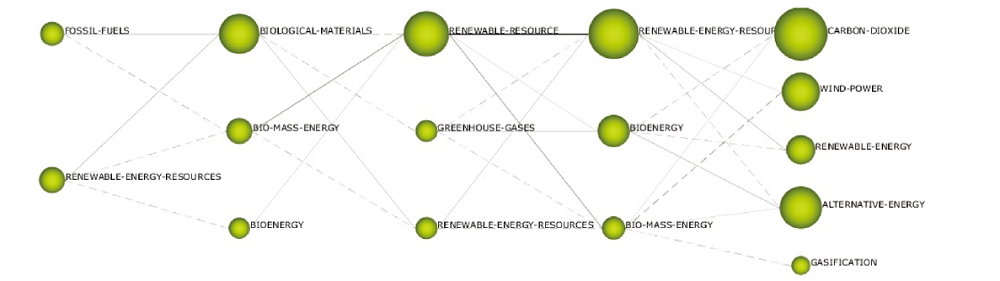

Even with less research about biomass as a renewable energy source, a words map was elaborated to show the most important word on this subject. Figure 8 shows this map.

Beginning with the terms of fossil fuels and renewable energy resources, the strongest links were in the sequence with biological materials. However, in the second period, biomass energy and bioenergy have a strong link with renewable resources and renewable energy resources from the third period. Renewable resources from the third period link strongly with renewable energy resources and biomass energy and bioenergy. In the last period the terms carbon dioxide, wind power, renewable energy, and alternative energy appear with relevant links with the fourth period. Considering these word maps, there are no words or terms related to energy management, performance evaluation, or decision-making.

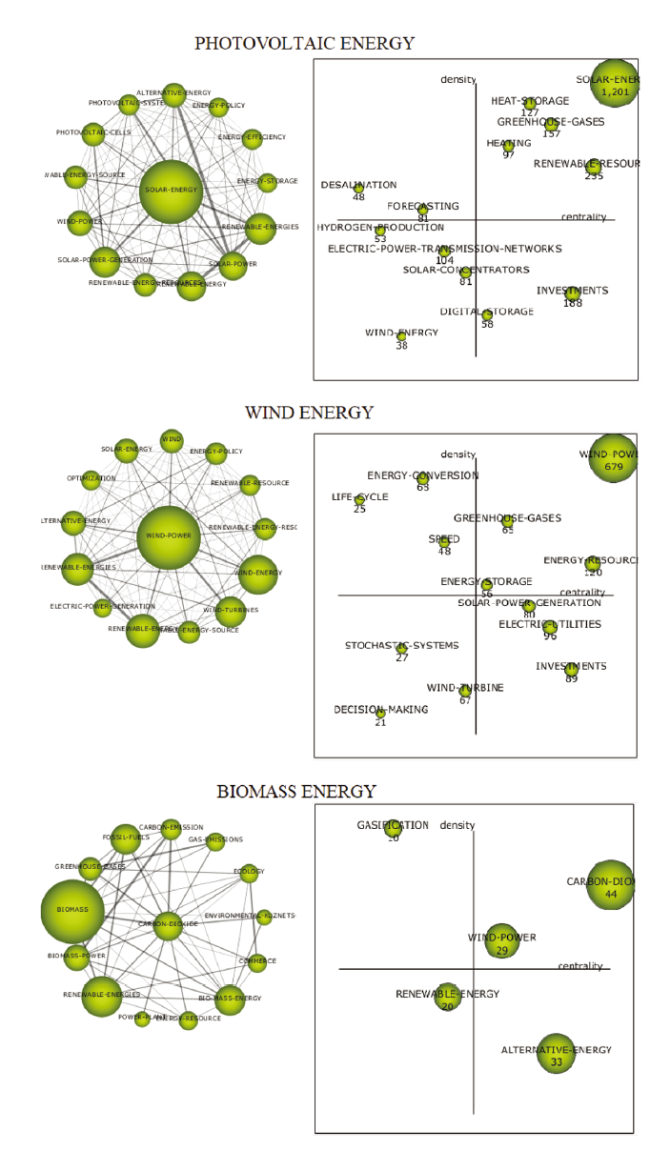

Figure 9 shows two kinds of maps: the cluster’s networks and strategic diagrams. On the left side are the cluster’s networks elaborated to give an understanding of what words are linked to the centralizing term on each renewable energy source researched, showing how strong the relations are between the terms related to the principal term in the most recent period (2017 to 2019). On the right side, the strategic diagrams are presented to show which keywords have greater centrality and density among the retrieved articles. The terms on the right are those that can be considered more central in most of the research, and the more upward the more densely searched. Therefore, those terms represented in the first quadrant can be considered the most relevant for each area in question.

As shown in the figure, from 2017 until 2019, the centralizing term on photovoltaic energy was “solar-energy”, which also appeared 1,201 times according to the strategic diagram. The words and terms with stronger links with solar energy and that represent the consolidation and importance of research in this area are solar power, solar power generation, renewable energies, and photovoltaic systems. There is also a strong link between alternative energy and solar power. The words and terms with thinner connection edges present some tendencies and possible gaps in this area: energy policy, energy efficiency, energy storage, photovoltaic cells, and alternative energy. From the strategic diagram, it can be seen that the other words which are densely researched are heat-storage, greenhouse-gases, heating, and renewable resources. Considering this analysis, there is a research opportunity regarding energy management and performance evaluation, since words or terms that indicate these study fields do not appear in this figure.

Related to wind energy, the term “wind power”, with density 1.0 as the central term of the map, and also with 679 mentions according to the strategic diagram, is linked consistently to the terms renewable energies, wind energy, wind turbines, and alternative energy, proving the consistency and development of these themes in the current period. However, the lower-intensity connections, which show an area of research that can be strengthened, refer to terms such as renewable resource, electric power generation, renewable energy, solar energy, energy policy, renewable energy source, wind, optimization, and electric power generation. Another central and densely researched terms in this theme are greenhouse-gases, energy storage, and energy resources. Among all these terms, energy policy may give an idea in the direction of the gap suggested in this article, since good management of companies is necessary to be able to comply with legislation and policies in the energy sector.

Related to biomass energy, the centralizing term with density 0.78 between 2017 to 2019 was “carbon-dioxide”, which appears 44 times according to the strategic diagram. The term carbon dioxide binds strongly to the term biomass. The term biomass, although it appears in numerous articles, does not have a strong connection with other terms, which also explains why the term is not at the center of the diagram, just as it doesn’t appear in the strategic diagram. Other strong links are between carbon emission and biomass power, and greenhouse gases and gas emissions, which can be intuitively explained. However, in this diagram, there are no terms or links between terms that lead to an indication of studies related to the management of biomass as a renewable source of electricity.

The word connections presented by SciMAT indicate research trends, which way they are going, and how this can generate new research opportunities. These research opportunities may focus on the most interesting word co-occurrences presented in this article, aiming to deepen the study and to analyze the cause and the specific meaning of these co-occurrences.

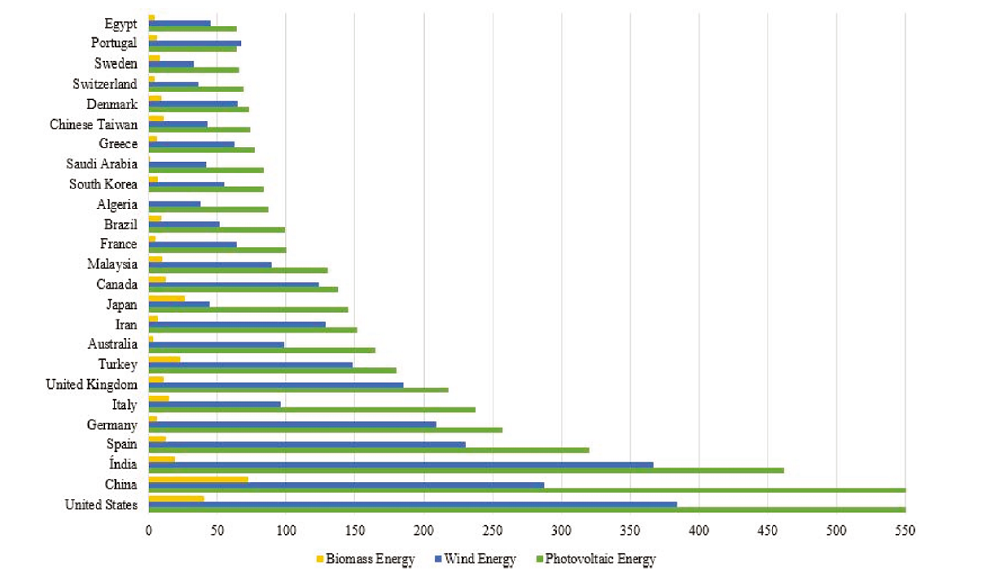

Figure 10 presents a graphic with the 25 countries/regions with the most publications on renewable energy sources, showing the relations in these publications among the three sources: photovoltaic, wind, and biomass.

Comparing this graphic of the Coutry/region publishing the most research and studies, as confirmed daily, the three countries that lead these studies and research (United States, China, and India) are also the three countries that generate the most jobs in the renewable energy generation plants (IRENA, 2018). Countries in Africa and the Middle East hardly appear at all because, according to IRENA (Whiteman et al., 2018), they contributed only about 3% of the total renewable energy capacity in 2017.

The origins of the most influential authors in the presented networks are as follows:

$\bullet$ Photovoltaic energy area: Cabeza is from Spain, Hodge and Kroposki are Americans, Rosen is a Canadian researcher, Sopian is from Malaysia, Akbarzadeh is Australian, and Duic is from Croatia.

$\bullet$ Wind energy: Catalão is a Portuguese researcher, Breyer is Finnish, Arroyo and Mañana are Spanish, Senjyu is Japanese, and Wang is Chinese.

$\bullet$ Biomass energy: Tokimatsu is a Japanese researcher, while Wahab, Mohamed, Rasat, Amini, and Ahmad are from Malaysia.

This cross-checking shows that the countries/regions that have the most publications in these areas are also the source of most of the most relevant authors on the topics. It can be highlighted that, although the United States, China, and India are the top three countries in the number of publications, only three from the 19 most influential authors are from these countries. It can be understood from this that the research on these three sources of renewable energy is widespread and developed in several countries/regions and by several research groups, not being concentrated only on the main research networks. Only Croatia and Finland among the countries/regions of origin of the main authors of the most influential research networks do not appear among the 25 countries/regions with the most publications in the research areas.
